Descrição Técnica
Processador(es)
Soquete Intel® Socket 1151 para for 6th Generation processadores Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
Suporta processadores Intel® de 14 nm
Suporta a tecnologia Intel® Turbo Boost 2.0
Chipset
Soquete Intel® Z170
Memória
Memória 4 x DIMM, máximo de 64GB, DDR4 3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered
Arquitetura de memória: Dois canais
Suporta Intel® Extreme Memory Profile (XMP)
Gráfico
Processador Gráfico Integrado - Suporte Intel® HD Graphics
Saída Multi-VGA: portas HDMI/DisplayPort 1.2 -
- Suporta HDMI com resolução máxima de 4096 por 2160 / 24 Hz
- Suporta DisplayPort com resolução máxima de 4096 por 2304 / 60 Hz
Máximo de memória compartilhada 512 MB
Suporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Suporte Multi-GPU
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Slots de expansão
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, +cinza(s))
1 x PCIe 3.0/2.0 x16 (x4 mode, +preta(s))
3 x PCIe 3.0/2.0 x1
Armazenamento
Intel® Z170 chipset :
2 x U.2 port*1,
1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2
4 x Porta(s) SATA 6Gb/s
Suporta Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports*3
Supports Intel® Smart Response Technology*3
ASMedia® ASM1061 controller :
2 x Porta(s) SATA 6Gb/s, preta(s)
LAN
Intel® I219V, 1 x Gigabit LAN, GameFirst technology
LAN Intel® Dual interconectado entre o controle LAN integrado e camada física (PHY)
Anti-surge LANGuard
Rede de dados sem fio
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth
Bluetooth V4.1
Áudio
ROG SupremeFX 2015 com 8 canais - CODEC de alta definição
Suporta: Detecção de conexão, Multi-streaming, Painel frontal com possiblidade de redefinir a conexão
Recursos de áudio:
- Gold-plated jacks
- DTS Connect
- Saída(s) Ótica S/PDIF no painel traseiro
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II
- SupremeFX Shielding Technology
- ESS® ES9023P
- TI RC4580 2VRMS audio OP AMP(s)
Portas USB
Intel® Z170 chipset:
6 porta(s) USB 3.0 (2 no painel traseiro, azul, conectores internos para mais 4 porta(s))
Intel® Z170 chipset: *5
6 porta(s) USB 2.0 (2 no painel traseiro, , conectores internos para mais 4 porta(s))
Intel® USB 3.1 controller:
1 porta(s) USB 3.1 (1 no painel traseiro, preta(s), Type-C)
Intel® USB 3.1 controller :
1 porta(s) USB 3.1 (1 no painel traseiro, vermelha(s), Type-A)
Recursos Exclusivos ROG
Start Button
Reset Button
LN2 Mode
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- NexFET™ Power Block MOSFET
- 10K Black Metallic Capacitors
Mem TweakIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
GameFirst III
Recursos especiais
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
Recursos exclusivos ASUS:
- MemOK!
- AI Suite 3
- Ai Charger
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
RAMCache
Sistema operacional suportado
Windows 7 32bit/64bit
Windows® 10 64bit
Windows® 8.1 64bit

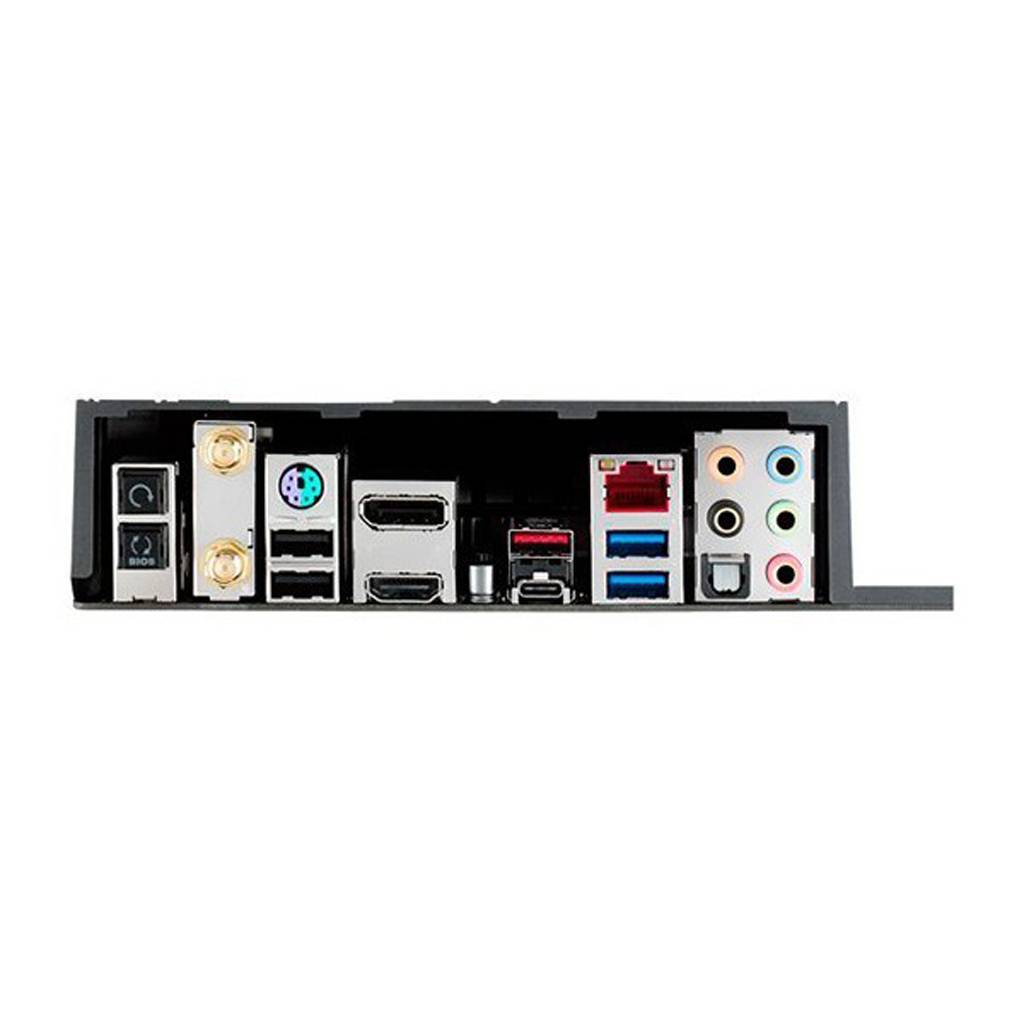

Portas no painel Traseiro
1 porta(s) PS/2 para teclado ou mouse
1 x DisplayPort
1 x HDMI
1 x porta(s) LAN (RJ45)
2 x porta(s) USB 2.0
5 x conector(es) de áudio
1 x USB 3.1 (preta(s))Type-C
1 x USB 3.1 (vermelha(s))Type-A
2 x USB 3.0 (azul)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
2 x Wi-Fi antenna port(s)
1 x USB BIOS Flashback Button(s)
Painel Interno
2 x entrada USB 3.0, com suporte a 4 portas USB 3.0 adicionais
2 x entrada(s) USB 2.0, com suporte a 4 portas USB 2.0 adicional(s)
2 x U.2 port
2 x Aura RGB Strip Headers
1 x conector(es) de ventoinha do processador (4 -pin)
4 x conectores SATA 6Gb/s
4 x conector(es) de ventoinha do chassi (4 -pin)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
1 x conector(es) de força EATX de 24 pinos
1 x painel(s) do sistema (Q-Connector)
1 x CPU OPT Fan connector(s) (4 -pin)
1 x Conector de energia de 8-pin ATX 12V
1 x botão MemOK!
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button
1 x ReTry button
1 x Slow Mode jumper(s)
Acessórios
Manual do usuário
ASUS Q-Shield
6 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD

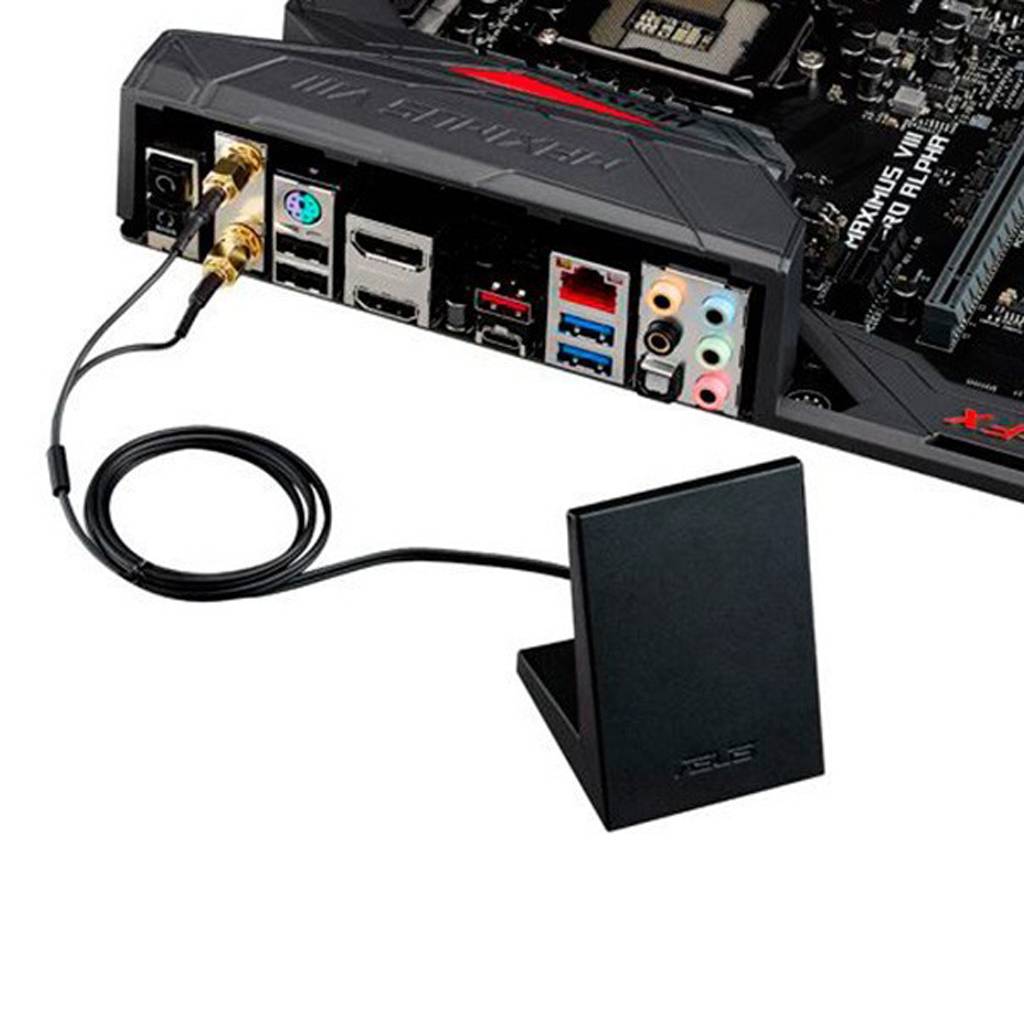

1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
1 x SLI bridge(s)
1 x Q-connector(s) (1 in 1)
1 x 12 in 1 ROG Cable Label(s)
ROG Fan Label
1 x ROG Door Hanger(s)
1 x Extension Cable for RGB strips (40 cm)
1 x Extension Cable for RGB strips (80 cm)
BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
Gerenciamento
WfM2.0, DMI3.0, WOL by PME, PXE
Suporte de Disco
Drivers
ROG GameFirst technology
ROG RAMDisk
ROG RAMCache
ROG CPU-Z
ROG Mem TweakIt
Overwolf
ROG Keybot II
ROG Aura (Lighting Control)
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities
Formato
Modelo ATX
30.5 cm por 24.4 cm (12 polegadas por 9.6 polegadas)
