Brand

ASUS

Series

ROG

Model

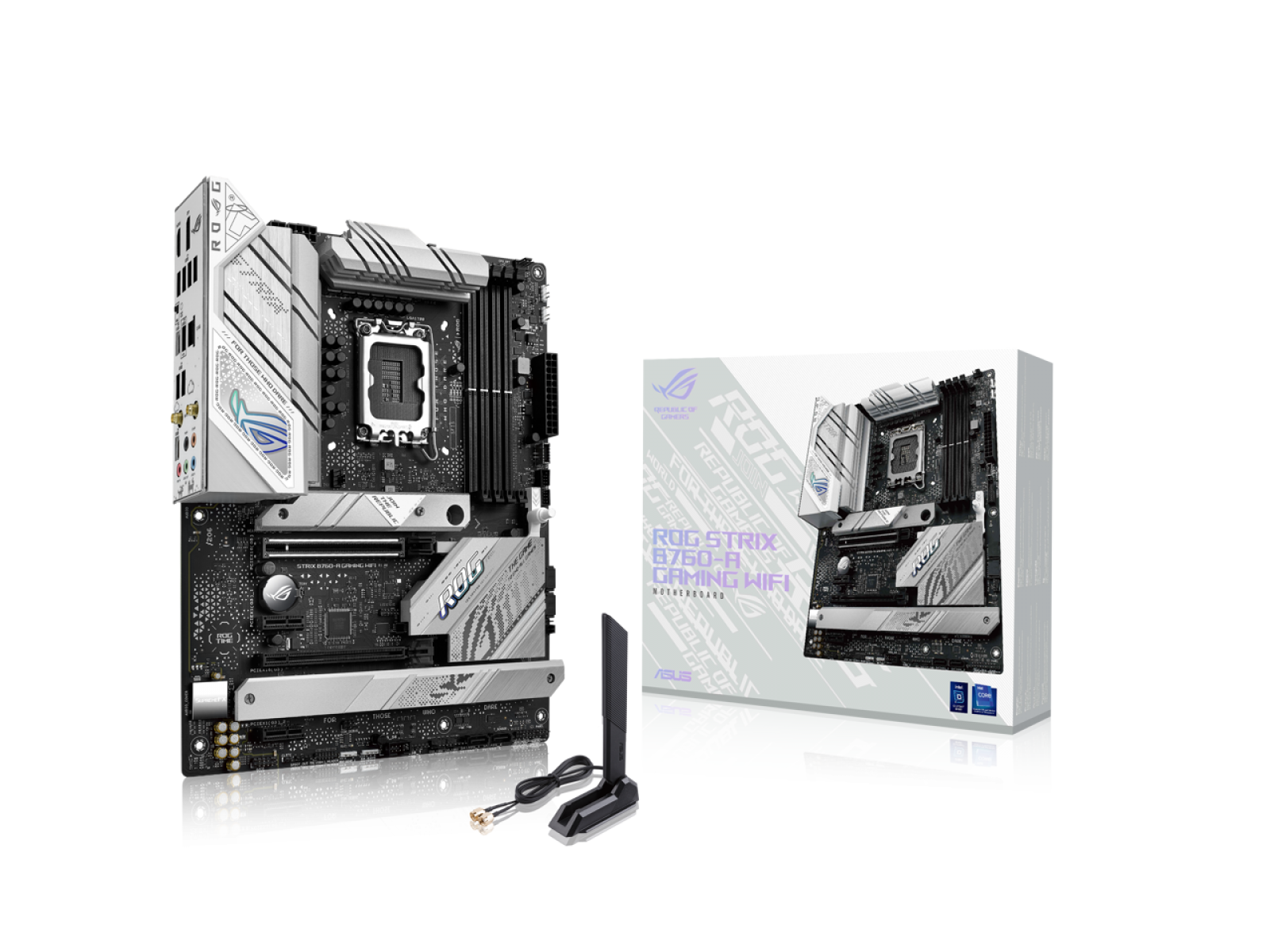

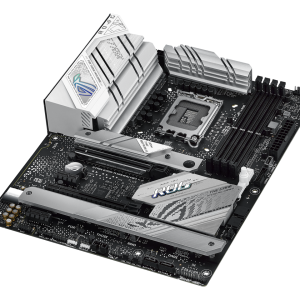

ROG STRIX B760-A GAMING WIFI

Part Number

90MB1EP0-M0AAY0

CPU Socket Type

LGA 1700

CPU Type

Intel Socket LGA1700 for 13th Gen Intel® Core & 12th Gen Intel Core, Pentium® Gold and Celeron Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

Intel B760

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

DDR5

7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Maximum Memory Supported

256GB

Channel Supported

Dual Channel

PCI Express 5.0 x16

1 x PCI Express 5.0 x16

PCI Express 3.0 x16

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots*

* PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

3 x M.2 (Support PCIe 4.0 x4)

SATA RAID

0/1/5/10

Audio Channels

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

Max LAN Speed

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless LAN

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth® v5.3**

* WiFi 6E 6GHz regulatory may vary between countries.

** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Bluetooth

Yes

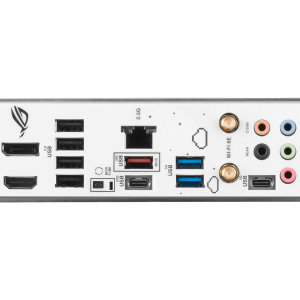

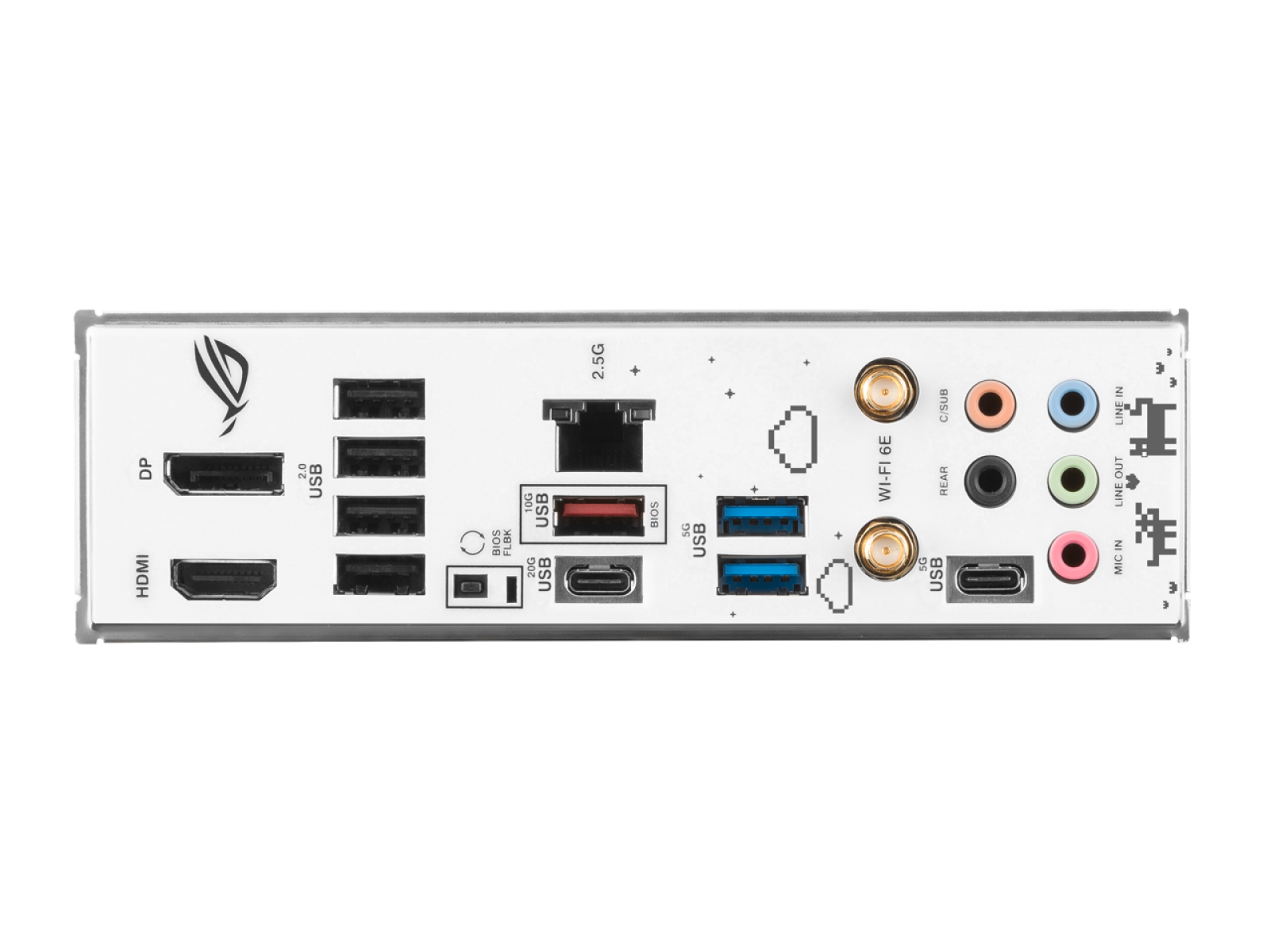

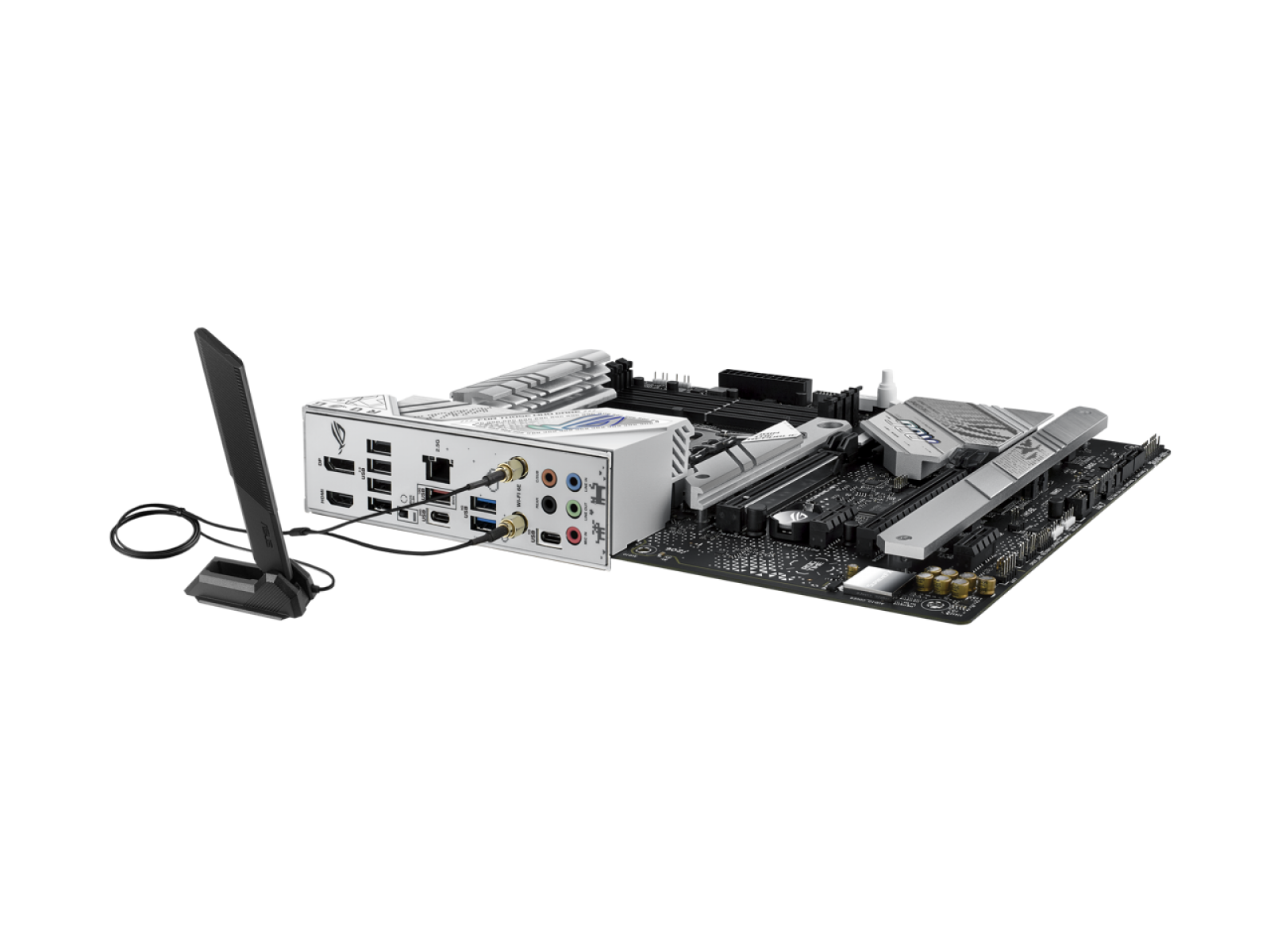

Back I/O Ports

1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)

3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMITM port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

Other Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® )

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header

Form Factor

ATX

Dimensions (W x L)

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Windows 11

Windows® 11, Windows® 10 64-bit

Features

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- CPU Socket lever protector

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers

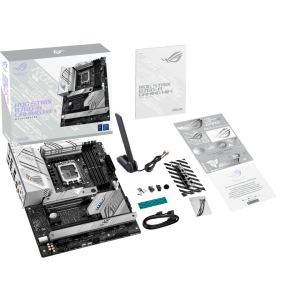

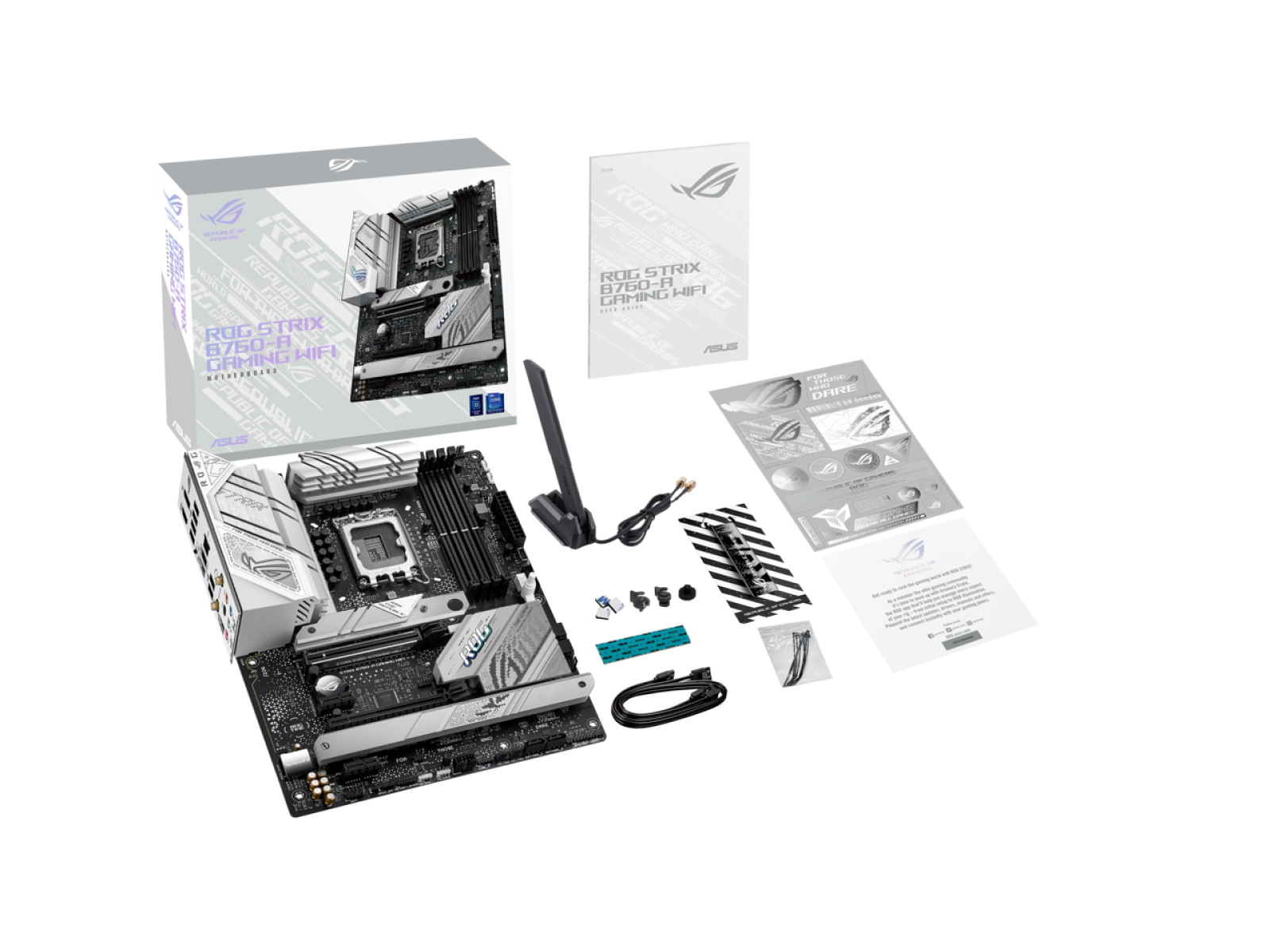

Package Contents

Cables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous

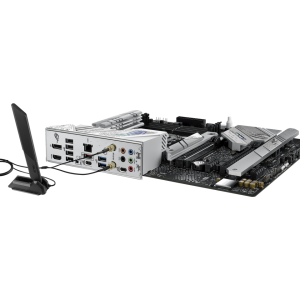

1 x ASUS Wi-Fi moving antennas

1 x Cable ties package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

1 x M.2 Rubber Packages

Documentation

1 x User guide

Date First Available

June 01, 2023
