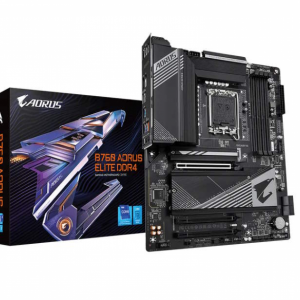

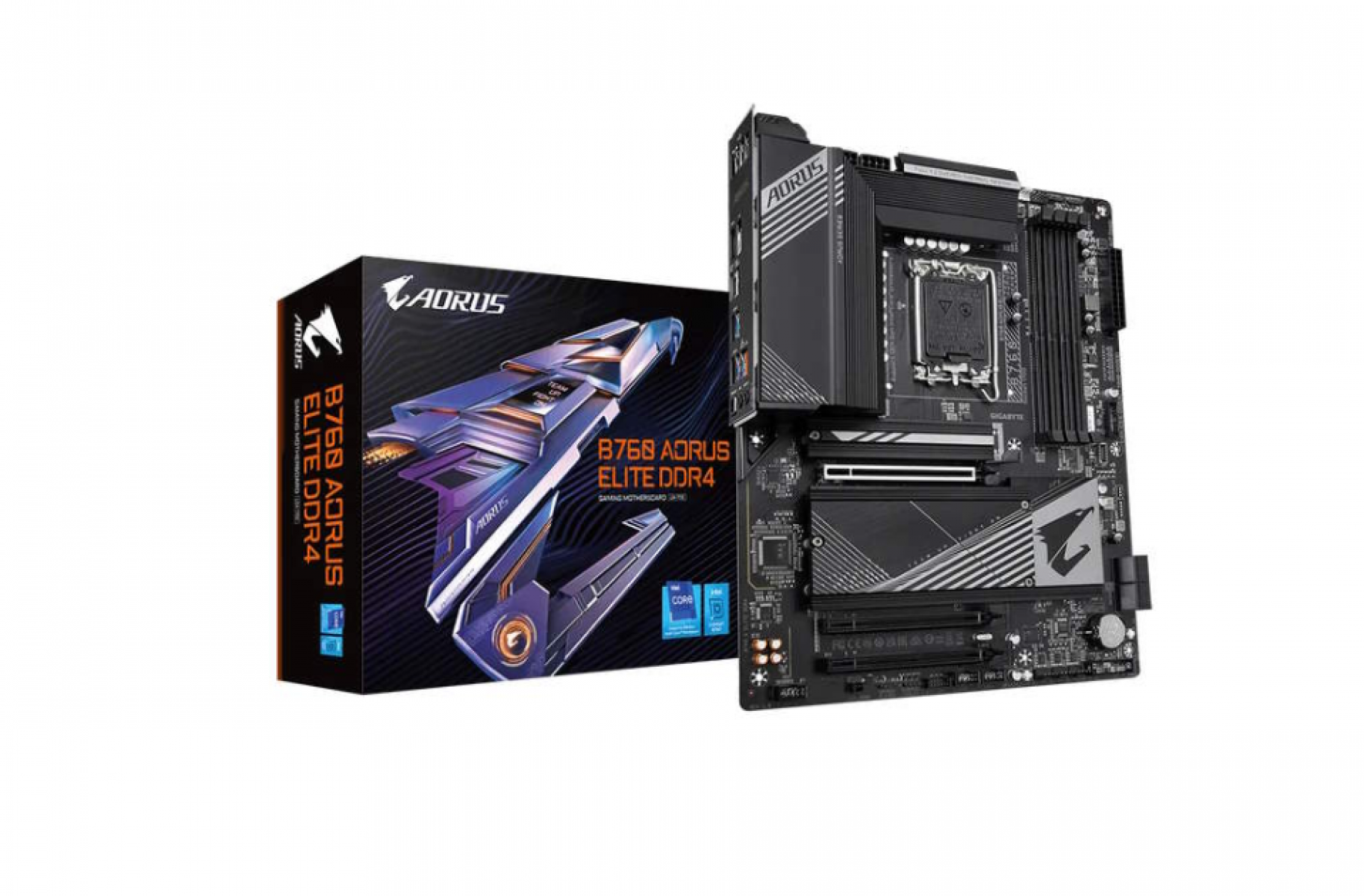

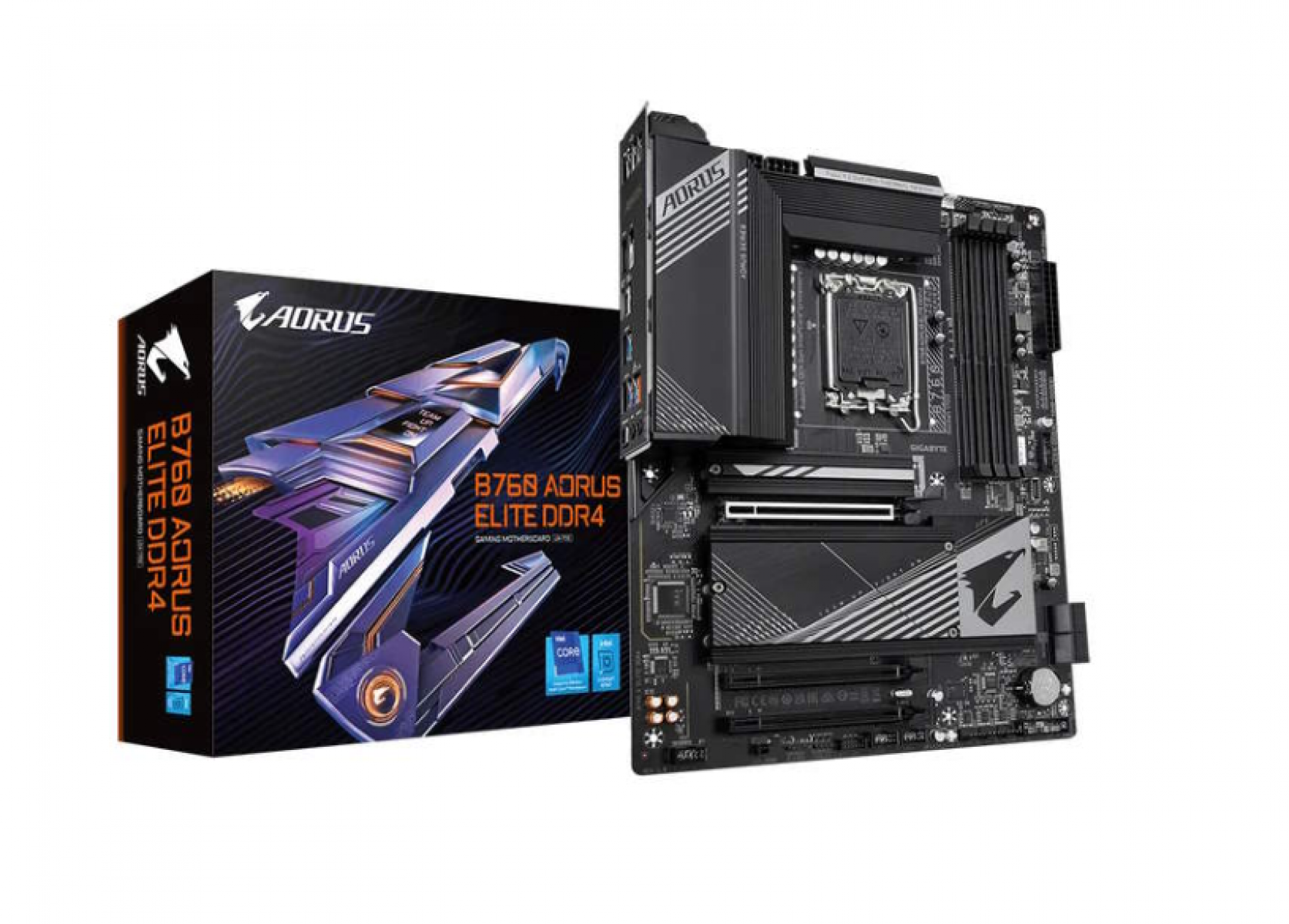

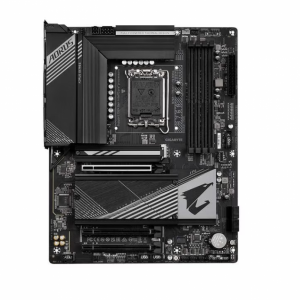

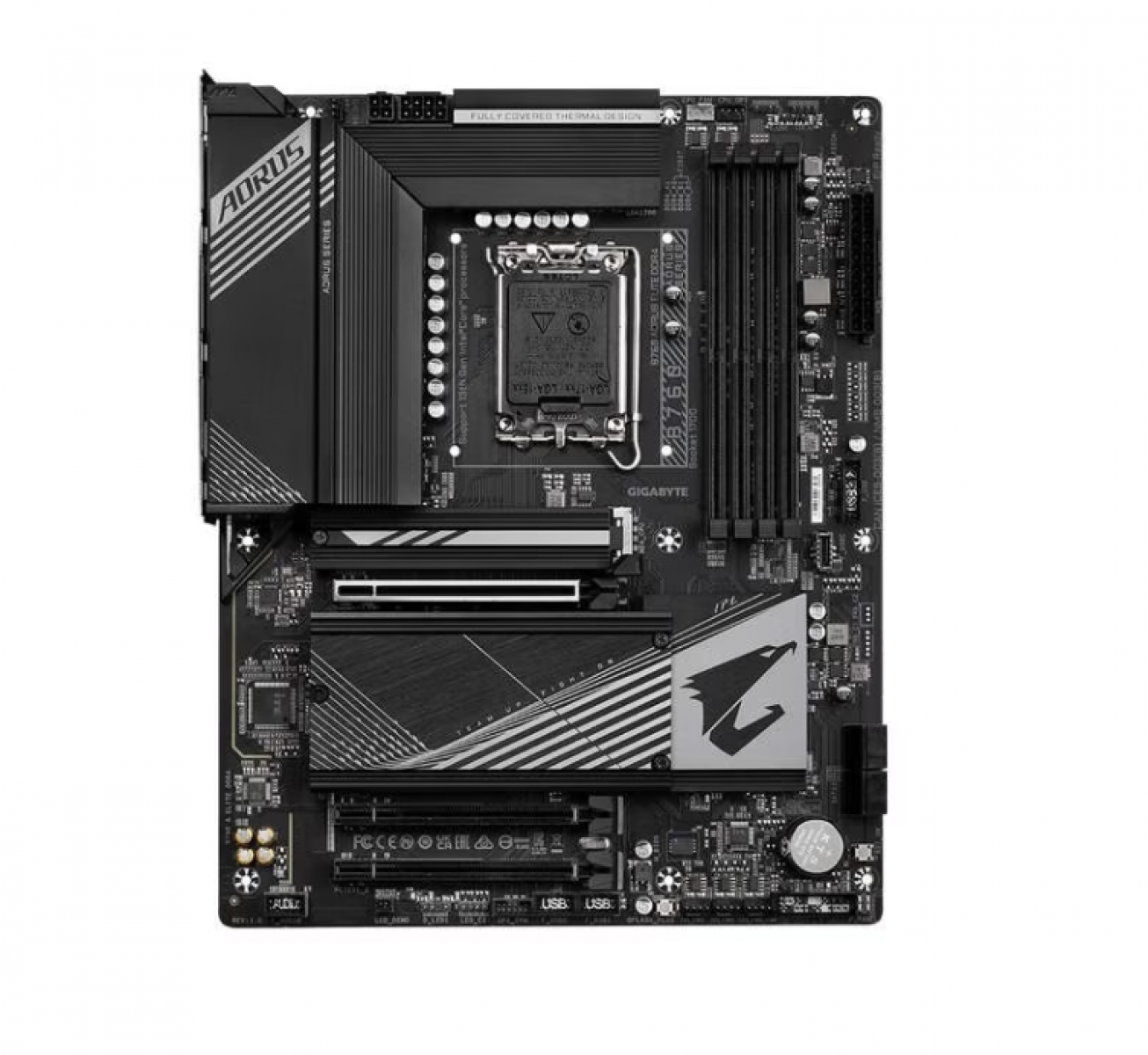

Placa Mãe Gigabyte B760 AORUS Elite, LGA 1700, DDR4

Intel ® Socket LGA 1700: Compatível com processadores da 13ª e 12ª geração

Desempenho inigualável: Solução VRM digital dupla de 12*+1+1 fases

Dual Channel DDR4: 4*DIMMs com suporte para módulo de memória XMP

Armazenamento de Próxima Geração: 3* Conectores PCIe 4.0 x4 M.2

Design térmico avançado e proteção térmica M.2: para garantir a estabilidade de energia do VRM e o desempenho do SSD M.2

EZ-Latch Plus: Conectores M.2 com liberação rápida e design sem parafusos

Redes rápidas: LAN de 2,5 GbE

Conectividade Estendida: Traseira e Frontal USB-C ® 10Gb/s, DP, HDMI

Ventilador Inteligente 6: Possui Vários Sensores de Temperatura, Conectores de Ventilador Híbridos com FAN STOP

Q-Flash Plus: Atualize o BIOS sem instalar a CPU, memória e placa gráfica

* Projeto de energia paralela de 6+6 fases

Aproveite e compre já na maior loja e site de informática e Gamer de Brasília, compre na Netshop!

Compre agora sua Placa Mãe Gigabyte, LGA 1700, DDR4 em Brasília nas lojas Netshop asa norte (rua da informática), águas claras (vitrini shopping)  Nova unidade netshop em águas claras no edifício big center!

Placa Mãe Gigabyte B650M DS3H, Chipset B650, AMD AM5, MATX, DDR5

Descrição Técnica

Com as rápidas mudanças tecnológicas, a GIGABYTE sempre segue as últimas tendências e fornece aos clientes recursos avançados e tecnologias mais recentes. As placas-mãe GIGABYTE são equipadas com solução de energia atualizada, os mais recentes padrões de armazenamento e excelente conectividade para permitir desempenho otimizado para jogos.

O desempenho inigualável das placas-mãe GIGABYTE é garantido por um design térmico inovador e otimizado para garantir a melhor estabilidade de CPU, Chipset, SSD e baixas temperaturas sob carga total de aplicativos e desempenho de jogos.

As placas-mãe GIGABYTE permitem a melhor experiência de conexão com velocidades incríveis de transferência de dados através da próxima geração de rede e conectividade de armazenamento.

• CPU

• LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

• L3 cache varies with CPU

• * Please refer to "CPU Support List" for more information.

• Chipset

• Intel® B760 Express Chipset

• Memory

• Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

• 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

• (Please refer "Memory Support List" for more information.)

• Onboard Graphics

• Integrated Graphics Processor-Intel® HD Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• * Support for HDMI 2.0 version and HDCP 2.3.

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

• * Support for DisplayPort 1.2 version and HDCP 2.3

• (Graphics specifications may vary depending on CPU support.)

• Audio

• Realtek® Audio CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel

• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• Support for S/PDIF Out

• LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Expansion Slots

• CPU:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

• Chipset:

• 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

• Storage Interface

• CPU:

• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

• Chipset:

• 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

• 4 x SATA 6Gb/s connectors

• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

• Chipset:

• 2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)

• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

• 2 x USB 3.2 Gen 1 ports available through the internal USB header

• Chipset+USB 3.2 Gen 1 Hub:

• 4 x USB 3.2 Gen 1 ports on the back panel

• Chipset+2 USB 2.0 Hubs:

• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x 4-pin ATX 12V power connector

• 1 x CPU fan header

• 1 x CPU fan/water cooling pump header

• 3 x system fan headers

• 1 x system fan/water cooling pump header

• 2 x addressable LED strip headers

• 2 x RGB LED strip headers

• 3 x M.2 Socket 3 connectors

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB Type-C® header, with USB 3.2 Gen 2 support

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

• 1 x reset button

• 1 x Q-Flash Plus button

• 1 x reset jumper

• 1 x Clear CMOS jumper

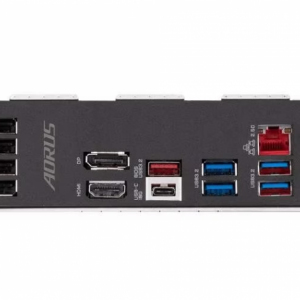

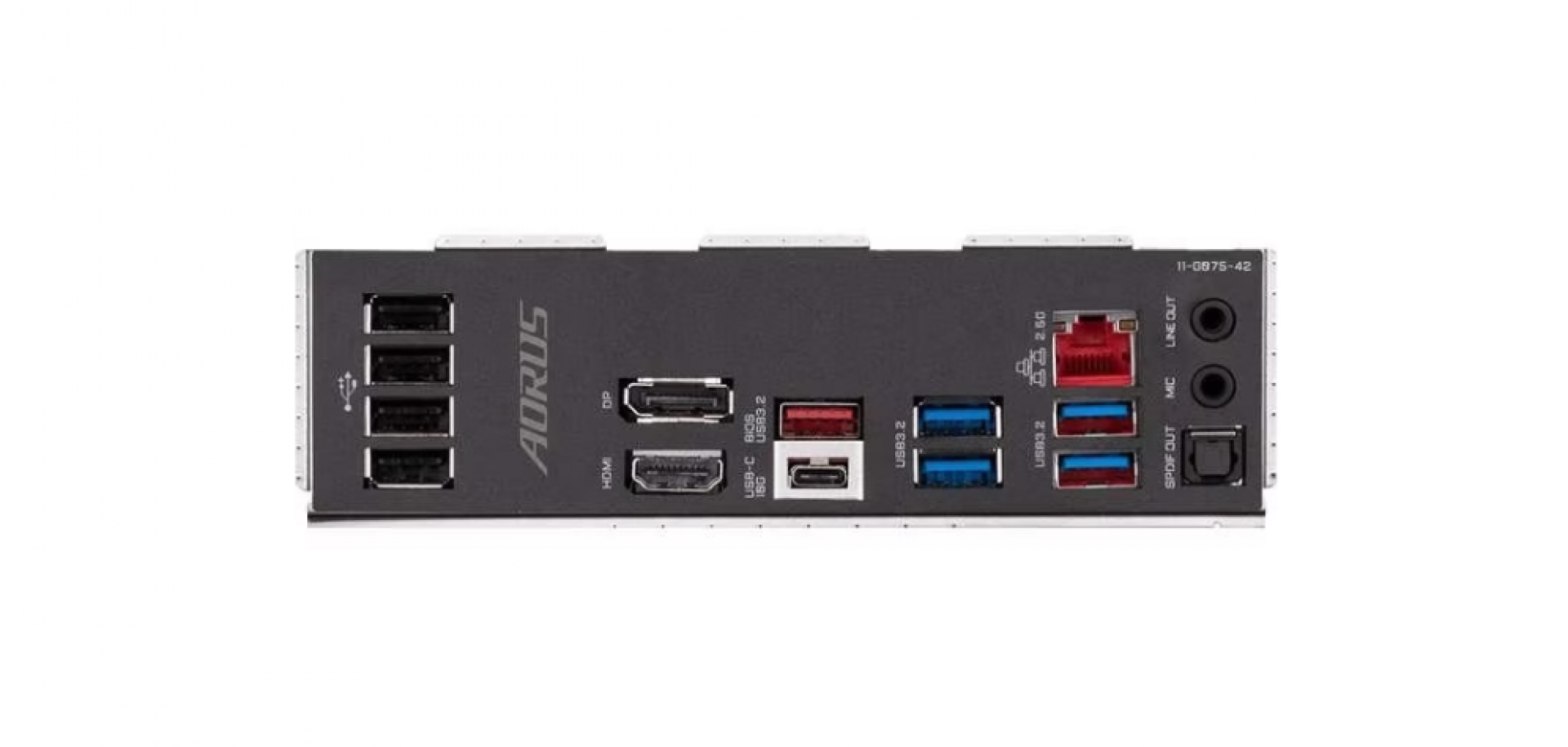

• Back Panel Connectors

• 1 x USB Type-C® port, with USB 3.2 Gen 2 support

• 1 x USB 3.2 Gen 2 Type-A port (red)

• 4 x USB 3.2 Gen 1 ports

• 4 x USB 2.0/1.1 ports

• 1 x HDMI port

• 1 x DisplayPort

• 1 x RJ-45 port

• 1 x optical S/PDIF Out connector

• 2 x audio jacks

• I/O Controller

• iTE® I/O Controller Chip

• H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control

• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

• 1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

• Support for GIGABYTE Control Center (GCC)

• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• Support for Q-Flash

• Support for Q-Flash Plus

• Bundled Software

• Norton® Internet Security (OEM version)

• LAN bandwidth management software

• Operating System

• Support for Windows 11 64-bit

• Support for Windows 10 64-bit

• Form Factor

• ATX Form Factor; 30.5cm x 24.4cm
