Descrição Técnica
Com as rápidas mudanças tecnológicas, a GIGABYTE sempre segue as últimas tendências e fornece aos clientes recursos avançados e tecnologias mais recentes. As placas-mãe GIGABYTE são equipadas com solução de energia atualizada, os mais recentes padrões de armazenamento e excelente conectividade para permitir desempenho otimizado para jogos.
O desempenho inigualável das placas-mãe GIGABYTE é garantido por um design térmico inovador e otimizado para garantir a melhor estabilidade de CPU, Chipset, SSD e baixas temperaturas sob carga total de aplicativos e desempenho de jogos.
As placas-mãe GIGABYTE permitem a melhor experiência de conexão com velocidades incríveis de transferência de dados através da próxima geração de rede e conectividade de armazenamento.
• CPU
• LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
• L3 cache varies with CPU
• * Please refer to "CPU Support List" for more information.
• Chipset
• Intel® B760 Express Chipset
• Memory
• Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)
• Onboard Graphics
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.0 version and HDCP 2.3.
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version and HDCP 2.3
• (Graphics specifications may vary depending on CPU support.)
• Audio
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• Support for S/PDIF Out
• LAN
• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Expansion Slots
• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Chipset:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• Support for AMD CrossFireX™ technology
• Storage Interface
• CPU:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
• Chipset:
• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
• 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 1 x USB 3.2 Gen 1 port on the back panel
• 4 x USB 2.0/1.1 ports available through the internal USB headers
• Chipset+USB 3.2 Gen 1 Hub:
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports on the back panel
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

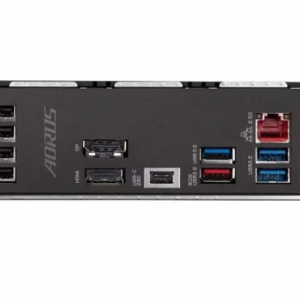

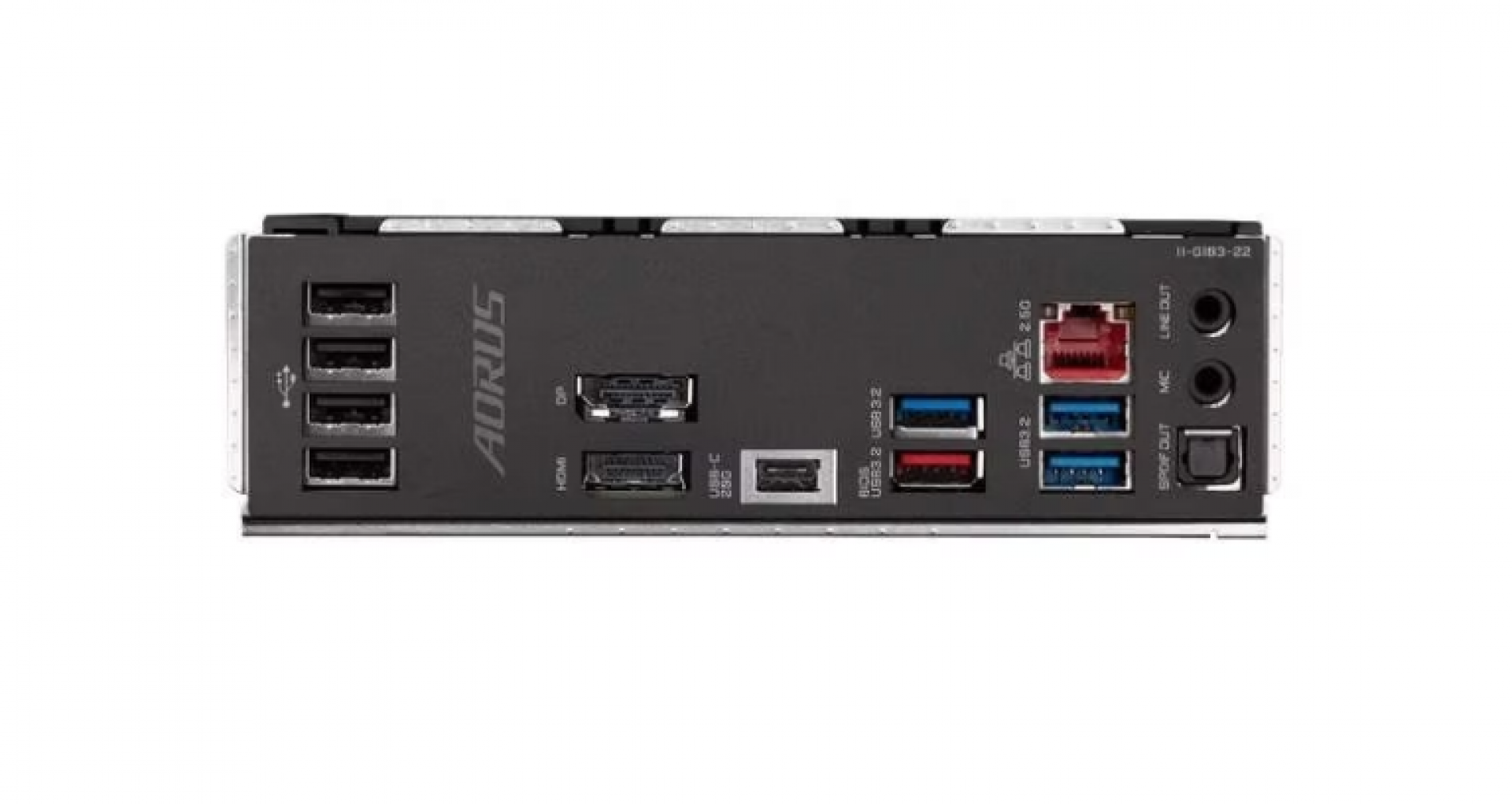

• Back Panel Connectors
• 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x HDMI port
• 1 x DisplayPort
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus
• Bundled Software
• Norton® Internet Security (OEM version)
• LAN bandwidth management software
• Operating System
• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
• Form Factor
• Micro ATX Form Factor; 24.4cm x 24.4cm
