Roteador Tp-Link Tl-Er7206 Gigabit Multi-Wan Vpn
Hospitalidade
O TP-Link Omada permite que os hotéis construam redes WiFi confiáveis. São apresentadas as soluções de rede WiFi para hotéis, incluindo topologia de rede, design, recursos, instalação e produtos.
Três portas livremente intercambiáveis que podem ser definidas para WAN ou LAN permitem que o roteador suporte até quatro portas WAN para satisfazer vários requisitos de acesso à Internet por meio de um dispositivo.
Cobertura WiFi completa e conexões com fio
Controle flexível de convidados
Roaming perfeito
Educação
Devido à sua solução de rede confiável, escalonável e segura, a TP-Link tem sido amplamente reconhecida por clientes globais no mercado de educação, desde escolas infantis com alguns APs até faculdades e universidades com centenas de APs.
Gerenciamento fácil
WiFi de alta densidade
Cobertura WiFi completa e conexões com fio
Especificações Roteador Tp-Link Tl-Er7206
CARACTERÍSTICAS DE HARDWARE
Protocolos e Normas IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

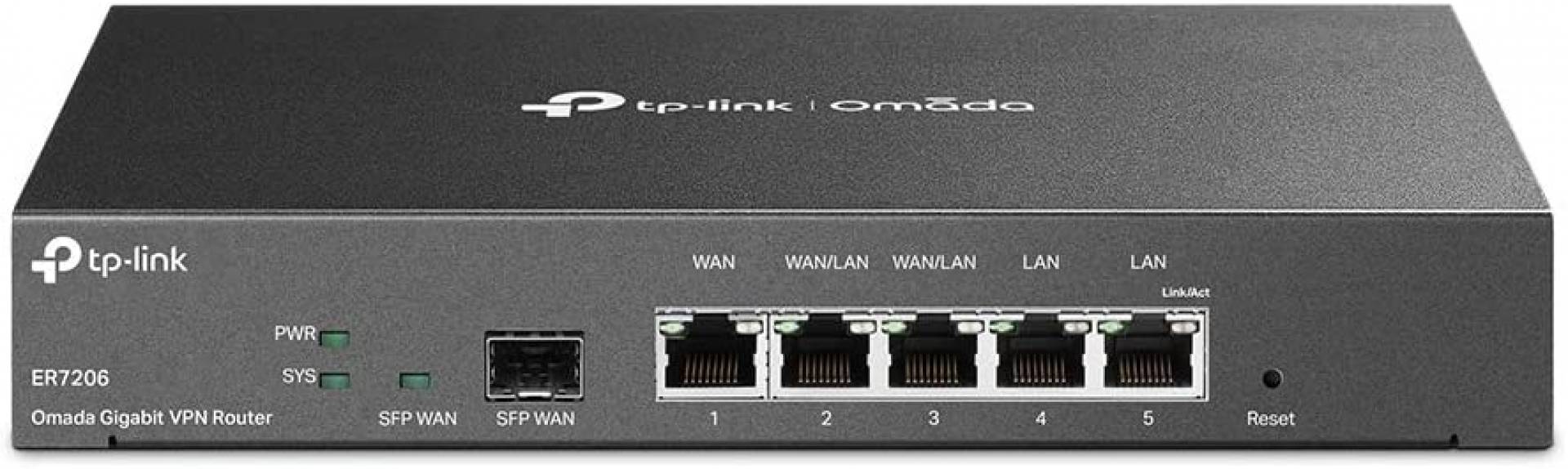

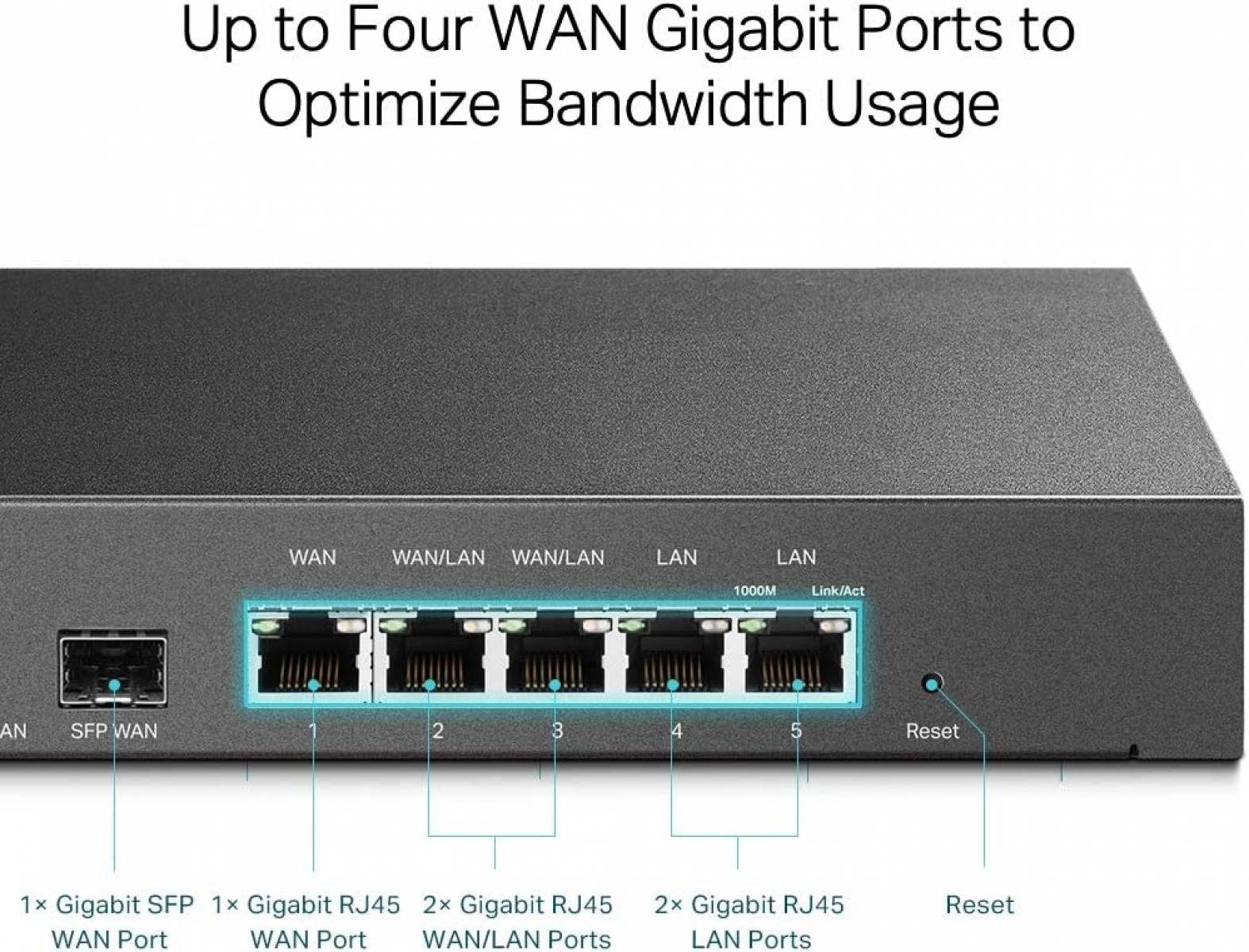

Interface • 1 Fixed Gigabit SFP WAN Port • 1 Fixed Gigabit RJ45 WAN Port • 2 Fixed Gigabit RJ45 LAN Ports • 2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Botão Reset Button
Fonte de alimentação 100–240 V~50/60 Hz
Flash SPI 4MB + NAND 128MB
DRAM 512MB
LED PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensões (L x P x A) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
PERFORMANCE
Concurrent Session 150,000
IPsec VPN Throughput 291.6 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP • PPPoE • PPTP • L2TP
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP*
IPv6 Developing‡
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
FUNÇÕES AVANÇADAS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing • Policy Routing
Bandwidth Control • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
" Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection
" NAT • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management
Session Limit IP-based Session Limit
VPN
IPsec VPN • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server • 10 PPTP VPN Clients • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server • 10 L2TP VPN Clients • 50 Tunnels • L2TP over IPSec
OpenVPN • OpenVPN Server* • 10 OpenVPN Clients* • 50 OpenVPN Tunnels*
SEGURANÇA
Filtering WEB Group Filtering§ URL Filtering Web Security§
ARP Inspection • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Access Control Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication • No Authentication • Simple Password* • Hotspot（Local User / Voucher* / SMS* / Radius*） • External Radius Sever • External Portal Sever* • Facebook*
GESTÃO
Omada App Yes

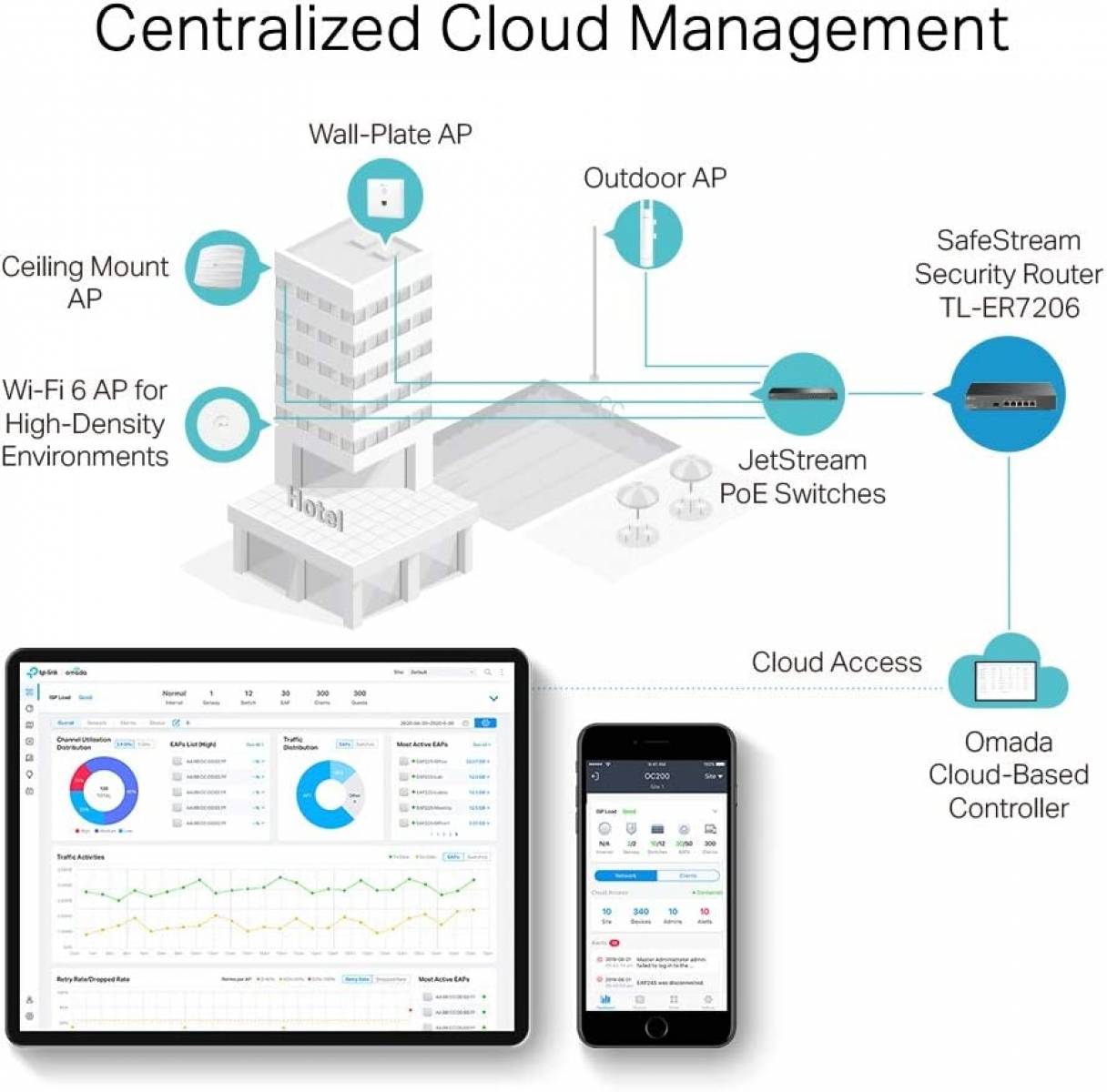

Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Syslog Support
Management Features • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)**
OUTROS
Certificações CE, FCC, RoHS
Conteúdo da embalagem • TL-ER7206 • Power Cord • Quick Installation Guide
Requisitos de Sistema Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH n
